A Comprehensive Guide to Injection Molds: From Basics to Applications

• 2025-07-11

A Comprehensive Guide to Injection Molds: From Basics to Applications

    In the vast landscape of modern manufacturing, injection molds are like brilliant pearls, radiating unique and charming luster and playing a crucial role. From the delicate mobile phone casings we use daily to the indispensable components inside cars and various household items, injection molds are everywhere. With their outstanding performance, they bring endless convenience and a rich variety of product choices to our lives.

Auto Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

The basic structure of injection molds

    Injection molds are complex and exquisite systems, much like elaborately constructed industrial buildings. They are mainly composed of multiple key components such as the gating system, molding system, ejection system, cooling system, and exhaust system, each of which shoulders a unique and significant mission.

Types and applications of injection molds

    The types of injection molds are rich and diverse, like a large and varied family. Different types of molds have their own characteristics in structure and application scenarios, just like different members of a family, each with unique skills and missions.

Single parting surface injection mold: The Fundamental and versatile "all-rounder"

    Single parting surface injection molds, also affectionately known as two-plate molds, are the most fundamental and structurally simple type in the injection mold family. They are like a plain and versatile player, yet are widely used in industrial production. It has only one parting surface. During mold opening, the moving mold and the fixed mold separate along this sole parting surface. The plastic part and the runner system's molten material will remain on one side of the moving mold together, and then they will be smoothly ejected through the ejection system. This type of mold has a simple structure, is easy to manufacture, and has a relatively low cost. It is like an affordable and practical player, suitable for producing various simple-structured plastic parts. In daily life, we often see common consumer goods such as plastic cups, storage boxes, and clothes hangers, packaging items like bottle caps, trays, and packing boxes, industrial components such as gaskets, protective covers, and bottom covers, agricultural and horticultural products like flower POTS and water pipe fittings, toys and educational supplies such as building blocks and basic toy components, as well as disposable medicine cups and non-precision consumables and other medical supplies. All of this is inseparable from its hard work.

Double parting surface injection mold: The "elite Representative" of precision and efficiency

    Double parting surface injection molds, also known as three-plate molds, have developed on the basis of two-plate molds. Like a meticulously crafted elite representative, they feature higher precision and more complex structures. It has two parting surfaces. During the mold opening process, the parting surfaces will be successively separated along these two parting surfaces, and the runner solidified material and the plastic part will be respectively released. The advantages of this mold are quite significant. It can achieve point-gate feeding with minimal gate marks. For fields that have high requirements for product appearance, precision and gate position, it is simply tailor-made. In the field of electronics and precision instruments, such as mobile phone casings, connectors, etc. In the field of automotive parts, such as interior panels, sensor housings, etc. In the field of optics and transparent products, such as lens protection covers, LED lampshades, etc. In the fields of medical and food packaging, such as medical bottle caps, chocolate packaging boxes, etc. In the fields of toys and high-end consumption, such as figurines and models, cosmetic shells, etc. In the field of small and complex structural components, such as micro gears and watch cases, it can also be seen to play a significant role.

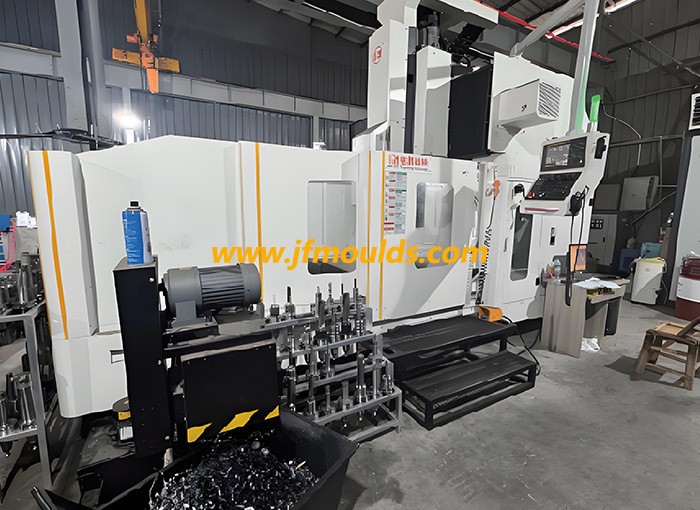

Processing equipment_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

Hot runner injection molds: The "Green Pioneer" of Energy conservation and high quality

    Hot runner injection molds are a green pioneer in the injection mold family. Their runner system is set in one or more constant-temperature hot runner plates and hot nozzles, just like putting on a warm "thermal insulation coat" for the runner. During the injection molding process, the plastic remains in a molten state throughout, eliminating the need to cool and solidify the plastic in the runner after each injection as in traditional molds. This significantly saves raw materials, reduces the generation of waste, and achieves the goals of energy conservation and environmental protection. Meanwhile, as the hot runner enables plastic to enter the cavity in a more stable state, it reduces the impact of temperature fluctuations on product quality, thus allowing for the production of higher-quality products and effectively lowering the rate of defective products. This type of mold is particularly suitable for fields with high requirements for production efficiency, material cost and product quality, such as the production of high-volume products, like mineral water bottle caps and home appliance shells. The manufacturing of engineering plastic products, such as aviation components, automotive gears, etc. Processing of precision large parts, such as automotive bumpers, medical device casings, etc. The production of transparent optical products, such as lens lenses, LED lampshades, etc. Manufacturing of multi-component/laminated products, such as two-color keys, turnover boxes, etc. And in the field of environmental protection and hygiene, such as food containers, medical consumables, etc.

Lateral core-pulling injection molds: The "Breakthrough expert" for Complex structures

    Lateral core-pulling injection molds, regarded as the breakthrough experts in the injection mold family, are mainly used for forming plastic parts with lateral concave-convex shapes or lateral holes. When the plastic part cannot be directly removed from the mold, the lateral core-pulling mechanism will step forward like a smart and brave warrior, ingeniously transforming the movement in the mold opening direction perpendicular to the parting surface into lateral movement. This enables the mold-forming parts in the lateral concave-convex structure of the plastic part to be smoothly separated from the product before being pushed out, allowing the product to be demolded smoothly. In the field of automotive parts, there are door handles, instrument panel housings, rearview mirror housings, etc. In the 3C electronics field, laptop cases, charger plugs, mobile phone case slots, etc. In the field of medical devices, anti-slip patterns on infusion bottle connectors, medical tube connection parts, and syringe shells, etc. In the field of daily necessities, there are folding storage box clips, toothbrush handles, storage boxes with clips, etc. In the field of pipe fittings products, products with complex lateral structures such as water pipe joints, three-way valves, and bottle caps with side holes all require lateral core-pulling injection molds for production.

Multi-cavity injection molds: The "Speed King" of Efficient production

    Multi-cavity injection molds are the speed Kings in the injection mold family. They are equipped with multiple cavities within a single mold, resembling an efficient production factory that can simultaneously form multiple plastic parts, significantly enhancing production efficiency. In large-scale production, this type of mold can significantly reduce production costs and enhance production efficiency, just like an indefatigable and highly efficient worker. It is widely used in the production of products with extremely high output requirements, such as small daily necessities and electronic components. For instance, when manufacturing small plastic toys, button battery casings, electronic connectors and other products, multi-chamber injection molds can produce multiple products in a single injection process, significantly shortening the production cycle, enhancing production efficiency, and meeting the market's large demand for these products.

The development trend of injection molds

    With the rapid development of technology, the injection mold industry is also constantly innovating and making progress, just like a giant ship riding the waves, sailing towards a more advanced and intelligent future.

Intelligentization and automation

    In the tide of rapid technological development, injection molds are making great strides towards intelligence and automation. The intelligent control system is like the smart brain of the mold, capable of monitoring various parameters during the injection molding process in real time, such as temperature, pressure, and flow rate, and automatically adjusting the injection molding process based on these data to achieve precise control of the production process. Automated equipment is like tireless hardworking workers, capable of completing a series of operations such as mold loading and unloading, cleaning, and injection molding, significantly enhancing production efficiency and reducing labor costs and the impact of human factors on product quality. For instance, some advanced injection molding machines are equipped with intelligent control systems that can automatically complete the injection molding process according to preset programs. Moreover, they can promptly issue alarms and take corresponding measures in case of abnormal situations to ensure the smooth progress of production.

High precision and high performance

    In today's highly competitive market environment, the requirements for the precision and performance of injection molds are getting higher and higher, just as the requirements for athletes' performance are becoming increasingly strict. Mold manufacturers are constantly adopting advanced processing techniques and materials, such as high-speed milling, electrical discharge machining, and five-axis linkage processing, to enhance the manufacturing accuracy and surface quality of molds. Meanwhile, the research and application of new mold materials have also provided strong support for enhancing the performance of molds. These materials possess higher strength, hardness, wear resistance and corrosion resistance, which can significantly extend the service life of molds and improve production efficiency. For instance, when manufacturing high-precision electronic component molds, by adopting advanced processing techniques and high-performance mold materials, the precision of the molds can be ensured to reach the micrometer level, thereby producing high-quality electronic components.

Green and environmentally friendly

    With the continuous enhancement of people's environmental awareness, green and environmental protection have become an important trend in the development of the injection mold industry, just like a green storm sweeping the world. In the process of mold design and manufacturing, an increasing number of enterprises are beginning to pay attention to energy conservation, emission reduction and resource recycling. By adopting hot runner technology, optimizing mold structure to reduce waste generation, and using recyclable materials, not only have production costs been lowered, but environmental pollution has also been reduced, achieving a win-win situation for economic and environmental benefits. For instance, some enterprises have reduced the generation of runner waste by adopting hot runner injection molds, while enhancing product quality and production efficiency. Some enterprises also use recyclable mold materials in the mold manufacturing process, which reduces the consumption of raw materials and the discharge of waste.

Injection molds, as key basic process equipment in modern manufacturing, play an irreplaceable and significant role in various fields. From infrastructure to diverse types, and to future development trends, it has always closely followed the pace of The Times, constantly innovating and making progress. It is believed that in the future, with the continuous development and innovation of technology, injection molds will continue to bring more high-quality and diverse products to our lives and drive the manufacturing industry towards an even more brilliant tomorrow.
