Exploring Injection Molds: A Comprehensive Analysis from Design to Application

• 2025-07-08

Exploring Injection Molds: A Comprehensive Analysis from Design to Application

    In the vast landscape of modern manufacturing, injection molds play a crucial role. From plastic products in daily life to precision components in key industries such as automobiles and electronics, injection molds are everywhere. They are like a "magic craftsman" behind the scenes, transforming plastic particles into products of various shapes and diverse functions.

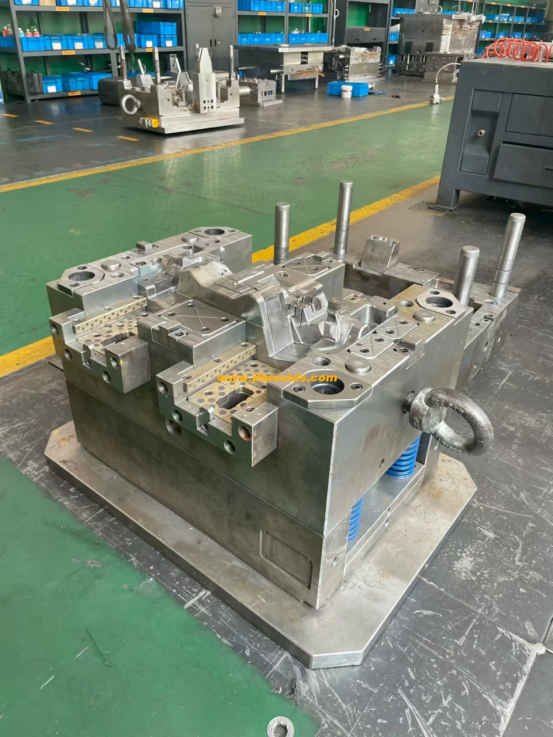

Auto Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

I. Working Principle of Injection Molds

    The working process of injection molds is like a precise industrial dance. Firstly, the plastic raw materials are heated and melted in the barrel of the injection molding machine, and are transformed into a viscous flow state with good fluidity. Subsequently, driven by the screw, these molten plastics are precisely injected into the closed mold cavity through the mold's gating system at high pressure and high speed. After the cavity is filled, the plastic cools and solidifies rapidly within the cavity, thus perfectly replicating the shape and size of the cavity. Finally, the mold is opened, and the formed plastic product is successfully ejected, completing a full injection molding cycle.

    Take the common injection molding process of plastic water cups as an example. After the plastic particles are heated and melted in the injection molding machine, they enter the mold cavity through the gate and runner. After cooling and shaping, the mold is opened and the plastic water cup is pushed out of the mold. Its surface is smooth and the dimensions are precise, fully meeting the design requirements.

Ii. Key Points of Injection Mold Design

    1. Product analysis and rubber part Positioning: Before designing injection molds, it is crucial to conduct a thorough analysis of the product's structure, dimensions, precision requirements, and appearance features. Designers need to fully consider the product's usage functions and production processes to ensure that the mold can meet all the requirements of the product. The positioning of rubber parts is to rationally arrange the products in the mold cavity, which requires taking into account both the injection molding process and the mold structure. From the perspective of injection molding process, factors such as runner length, waste generation, gate position, injection balance and cavity pressure balance should be taken into account to ensure that the plastic can evenly fill the cavity and avoid injection molding defects. From the perspective of mold structure, it is necessary to meet the sealing requirements to ensure that there is no leakage of glue during the injection molding process of the mold. At the same time, sufficient space should be reserved for the moving parts of the mold such as the row position and the inclined top to ensure that the mold structural components have sufficient strength and avoid interference among multiple moving parts. In addition, the layout of screws, cooling water and ejection devices should also be fully considered to ensure the normal operation of the mold and the smooth demolding of the product.

    2. Mold structure design: The design of the mold structure directly determines the performance and service life of the mold. It is influenced by both the type of injection machine and the characteristics of the rubber parts. During the design process, it is necessary to give priority to the technical specifications of the injection molding machine, such as clamping force, injection volume, and template size, to ensure that the mold can be perfectly matched with the injection molding machine. At the same time, it is necessary to fully understand the technological properties of plastics, such as fluidity and shrinkage rate, in order to rationally design the gating system, molding components and temperature control system. The design of the gating system includes the shape, size and position of the runner and gate, with the aim of efficiently transporting the molten plastic into the cavity and ensuring uniform flow of the plastic within the cavity. Formed components are the parts directly involved in the product forming process, and their design accuracy and surface quality play a decisive role in product quality. Common structural components such as positioning rings, nozzles, and screws, although seemingly ordinary, are crucial for the assembly and positioning of molds. The row position mechanism and the ejection mechanism are respectively responsible for the lateral parting of the mold and the demolding of the product. Their design needs to be precise and reliable to ensure the smooth progress of production. The design of the mold temperature control system is to ensure that the plastic can cool evenly in the cavity and avoid defects such as deformation and shrinkage.

    3. Mold parts design: Mold parts can be classified into forming parts and structural parts. Forming parts such as dies, punches, inserts, and rows directly participate in the formation of the cavity space, and their design and manufacturing precision requirements are extremely high. When designing inserts, multiple factors need to be comprehensively considered, such as avoiding the production of sharp steel and thin steel to prevent affecting the strength and service life of the mold. It should be easy to process to reduce production costs; It is convenient for size adjustment and maintenance, and improves the maintainability of the mold. Ensure the strength of the formed parts and prevent deformation or damage during the injection molding process. Easy to assemble, improving the assembly efficiency of the mold; It must not affect the appearance and meet the appearance quality requirements of the product. At the same time, the cooling issue should also be comprehensively considered to ensure that the inserts can be adequately cooled during the forming process. Structural parts are used for installation, positioning, guiding, ejection and performing various actions. Their design needs to ensure the overall stability and reliability of the mold.

Motorcycle Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

Iii. Manufacturing Process of Injection Molds

    1. Programming and electrode fabrication: After the mold design is completed, the CNC program needs to be compiled based on the processing conditions of each component. For some complex shapes, due to the length and diameter limitations of the cutting tools, it is impossible to directly form them with larger tools. At this time, electrodes need to be made and formed through EDM (Electrical Discharge Machining). EDM processing utilizes the principle of discharging to corrode materials and can produce mold parts of various complex shapes. However, it can only process conductive materials, and the commonly used electrode materials are copper and graphite.

    2. Mechanical processing: The mechanical processing of molds encompasses a variety of techniques, including CNC machining, EDM machining, wire cutting machining, and deep hole drilling machining, etc. CNC machining, or numerical control machining center, can precisely control the movement trajectory of tools by writing processing programs, achieving high-precision processing of mold parts. It is suitable for processing various complex curved surfaces and shapes. As mentioned earlier, EDM processing is used to process some complex shapes that are difficult to complete by traditional mechanical processing methods. Wire cutting processing is mainly applied to the processing of sharp corners and can cut out high-precision contours. Deep hole drilling is generally used for the processing of water transport holes in large molds and ejector pin holder holes to meet the cooling and ejection requirements of molds.

    3. Fitter assembly: Fitters play a crucial role in the mold manufacturing process, and their work runs through the entire manufacturing process. Fitters need to have rich experience and exquisite skills, and be proficient in operations such as fit mold assembly, turning, milling, grinding and drilling to ensure the assembly accuracy and fit quality of each component of the mold.

    4. Mold saving and polishing: Mold saving and polishing are the fine treatments carried out on molds before assembly after they have undergone CNC, EDM, and fitter processing. By using tools and materials such as sandpaper, oilstone and drill gypsum, the surface of mold parts is ground and polished to improve the smoothness of the mold surface, making the surface of the formed plastic products smoother and more beautiful. At the same time, it also helps to improve the demolding performance of the mold.

Commodity Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

Iv. Application Fields of Injection Molds

    1. Automotive industry: In automotive manufacturing, injection molds are widely used in the production of various automotive parts and interior components. For instance, car bumpers, produced by injection molds, can achieve complex shape designs and meet the safety and aesthetic requirements of automobiles. The automotive dashboard, manufactured through injection molds, can ensure its dimensional accuracy and surface quality, providing drivers with clear information display. Automotive interior panels, produced by injection molds, have a good texture and assembly accuracy, enhancing the interior quality of automobiles.

    2. Electronic and electrical industry: Many components of electronic and electrical products, such as casings, connectors, and switches, cannot do without injection molds. For instance, in the case of mobile phone shells, injection molds can produce thin, sturdy and well-textured shells, protecting the internal components of the phone while meeting consumers' demands for both aesthetics and a good feel. The keys of a computer keyboard are manufactured through injection molds, which can ensure the feel and lifespan of the keys and provide a comfortable typing experience.

    3. Daily necessities industry: Most of the daily necessities in our lives, such as cups, tableware and toys, are produced by injection molds. Plastic cups, injection molds can produce cups of various shapes, colors and capacities to meet the needs of different consumers. Children's toys, injection molds can produce toys with rich shapes, safety and non-toxicity, bringing joy to children.

    4. Packaging industry: The production of various plastic containers, bottle caps and other packaging products all rely on injection molds. Plastic bottles, produced by injection molds, have excellent sealing performance and strength, making them suitable for packaging various liquid products. Bottle caps, injection mold-made bottle caps can ensure a tight fit between the cap and the bottle body, preventing liquid leakage.

Two Color Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

V. Development Trends of the Injection Mold Industry

    1. Automation and Intelligence: With the rapid development of technology, the application of automation and intelligence technologies in the injection mold industry is becoming increasingly widespread. The automated injection mold production line can achieve the automatic operation of processes such as mold opening and closing, injection molding, cooling, and mold demolding, which greatly improves production efficiency, reduces labor costs and production cycles, and at the same time enhances product quality and consistency. Intelligent manufacturing achieves real-time monitoring and automatic optimization of the production process through the application of technologies such as sensors, robots, and artificial intelligence, thereby enhancing production efficiency and product quality. For instance, the temperature, pressure and other parameters of the mold are monitored in real time through sensors, and the production process is optimized and adjusted by using artificial intelligence algorithms to ensure the stability of product quality.

    2. Green and environmental protection: Against the backdrop of increasingly prominent global environmental issues, green and environmental protection have become the focus of attention in the injection mold industry. Injection mold manufacturing enterprises will pay more attention to environmental protection, adopt environmentally friendly materials and green processes, and reduce waste generation and energy consumption. For instance, by using degradable plastic materials, developing energy-saving injection molding processes, reducing energy consumption and exhaust emissions during the injection molding process, and promoting the development of the injection mold industry towards a green and environmentally friendly direction.

    3. High precision and high quality: The market's demands for product quality and precision are constantly rising, which prompts the injection mold industry to continuously enhance the precision and quality of its products. High-precision injection molds can produce more delicate products, meeting the market's requirements for product appearance and dimensional accuracy. Meanwhile, high-quality injection molds have a longer service life, which can better ensure the stability and consistency of the molds and reduce production costs.

    4. Customization and Personalization: With the upgrading of social consumption, consumers' demand for personalized customization of products is constantly increasing. The injection mold industry needs to meet this demand and provide more diverse and flexible products. Injection mold manufacturing enterprises need to customize products of different styles and functions according to the demands of customers, so that the products can better meet market demands. For instance, customizing plastic product molds with unique appearance designs or special functions for customers.

    Injection molds, as a key link in modern manufacturing, are constantly evolving and innovating in their design, manufacturing processes and application fields. With the advancement of technology and changes in market demand, the injection mold industry will continue to move towards automation, intelligence, environmental friendliness, high precision and quality, as well as customization and personalization, playing a more significant role in promoting the development of various industries.
