Injection molds: The "Industrial Gene" Hidden Behind Everything

• 2025-07-12

Injection molds: The "Industrial Gene" Hidden Behind Everything

    When our fingertips trace the smooth edge of a mobile phone, unscrew the crisp thread of a mineral water bottle, or touch the delicate texture of a car interior, few people realize that these plastic objects within easy reach in daily scenes all originate from the same "industrial mother body" - injection molds. This complex component, precisely carved from metal, is like a silent creator, transforming molten plastic into the fundamental parts that support the operation of modern society through millions of repeated precise movements. In the vast system of manufacturing, injection molds are not only the "translators" connecting design drawings with physical products, but also the "invisible yardstick" measuring the industrial precision of a country.

Auto Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

I. From "Conception" to "Substance" : The Reverse Philosophy of Mold Design

    The birth of a new product often begins with a creative sketch drawn by a designer, but the key to truly bringing the idea to life lies in the reverse thinking of mold design. Unlike the "forward creation" in product design, mold design requires disassembling the product form like solving a Rubik's Cube, and planning out a precise system in the metal blank that enables the plastic to "counter-flow form". The depth of this reverse thinking directly determines whether a product can move from the blueprint to reality.

The surgical thinking of product deconstruction

    After obtaining the 3D model of the product, the mold designer must first conduct a "structural feasibility diagnosis". Take the plastic frame of a child safety seat as an example. The crisscrossing reinforcing ribs inside not only have to bear the impact force but also ensure that the plastic melt can smoothly fill every corner. The designer needs to virtually disassemble the mold on the computer screen and determine the position of the parting surface - this key interface that divides the mold into the moving mold and the fixed mold. It should not only avoid the appearance surface of the product but also facilitate smooth separation during demolding. If complex structures with side holes or upside-down openings are encountered, a core-pulling mechanism also needs to be designed: when the mold opens and closes, these components, which act like "mechanical arms", will extend and contract along the preset trajectory to ensure that the plastic parts will not get stuck.

    This deconstruction process is like a surgical operation, where every step must take into account both safety and efficiency. For instance, at the interface of the catheter of a medical infusion set, there is a 0.5mm wide sealing groove. The mold designer must reserve a protrusion of the same precision at the corresponding position and calculate the shrinkage rate of the plastic after cooling, keeping the error within ±0.02mm. Once there is a design mistake here, it may lead to the risk of leakage during infusion. This is why the review during the mold design stage often requires cross-departmental collaboration - structural engineers, material experts and production technicians all participating together to ensure that every detail can stand the test of actual production.

CAE Simulation: A digital sand table for virtual trial and error

    Modern mold design has long bid farewell to the era of "drawing based on experience", and computer-aided engineering (CAE) simulation technology has become an indispensable "digital sand table". Before the formal processing of the mold, the designer will simulate the flow process of the plastic melt in the mold through CAE software: how the red high-temperature melt is injected from the gate, how the blue cooling circuit takes away heat, and whether the yellow stress concentration area will cause the product to deform. By adjusting the runner diameter and changing the gate position, designers can complete hundreds of trial and error operations in a virtual environment, reducing the defect rate in actual production by more than 80%.

    A certain home appliance enterprise once planned to launch an ultra-thin water tank for humidifiers, with a side wall thickness of only 1.2mm. The traditional design scheme repeatedly encountered the problem of insufficient melt filling. Through CAE simulation, it was found that the problem lies in the unreasonable layout of the flow channel - by the time the melt reaches the corner of the water tank, its temperature has dropped to the freezing point. The designer immediately adopted a "fan-shaped diversion channel" design, changing the melt inlet from a single point to a three-point balanced feeding, and at the same time optimized the cooling waterway. Eventually, the product qualification rate was increased from 65% to 99%. This virtual optimization not only saves the cost of repeatedly modifying molds, but also shortens the product launch cycle by nearly one month.

Motorcycle Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

Ii. Material Game: The "Symbiotic Evolution" of Molds and Plastics

    The history of the development of injection molds is essentially a history of the competition among material technologies. Mold steel and plastic raw materials are like "spear and shield", constantly driving each other to upgrade: when new types of plastics put forward higher molding requirements, mold materials must break through accordingly. The advancement of mold technology, in turn, has opened up broader application scenarios for plastics. This symbiotic relationship is particularly evident in contemporary manufacturing.

Die steel: Maintains precision under high temperature and high pressure

    The "skeleton" of a mold is made of mold steel, and its performance directly determines the service life and precision of the mold. Ordinary daily-use molds mostly adopt S50C carbon structural steel, which can withstand tens of thousands of molding cycles. For components with strict requirements such as the engine hood of a car, alloy tool steels like Cr12MoV must be used. After quenching treatment, their hardness can reach HRC58-62, which is sufficient to resist the continuous erosion of molten plastics.

    With the leap in the performance of engineering plastics, die steel is facing unprecedented challenges. The PEEK (polyetheretherketone) plastic used in the aerospace field has a melting point as high as 343℃. During molding, the mold needs to withstand long-term high-temperature cycles, and traditional steel is prone to thermal fatigue cracks. For this reason, the Swedish company SSAB has developed a special hot work die steel called "Dievar". By adding alloying elements such as vanadium and molybdenum, the thermal conductivity has been increased by 20%, and the thermal fatigue life has been extended to more than three times that of ordinary steel. In the medical field, injection syringe molds require an extremely high surface finish to prevent bacterial growth caused by plastic residues. The "NAK80" pre-hardened steel from Japan's Daido Special Steel, after vacuum degassing treatment, can achieve a mirror-like effect without polishing, making it the preferred material for such precision molds.

Plastic raw materials: The leap from "general" to "special"

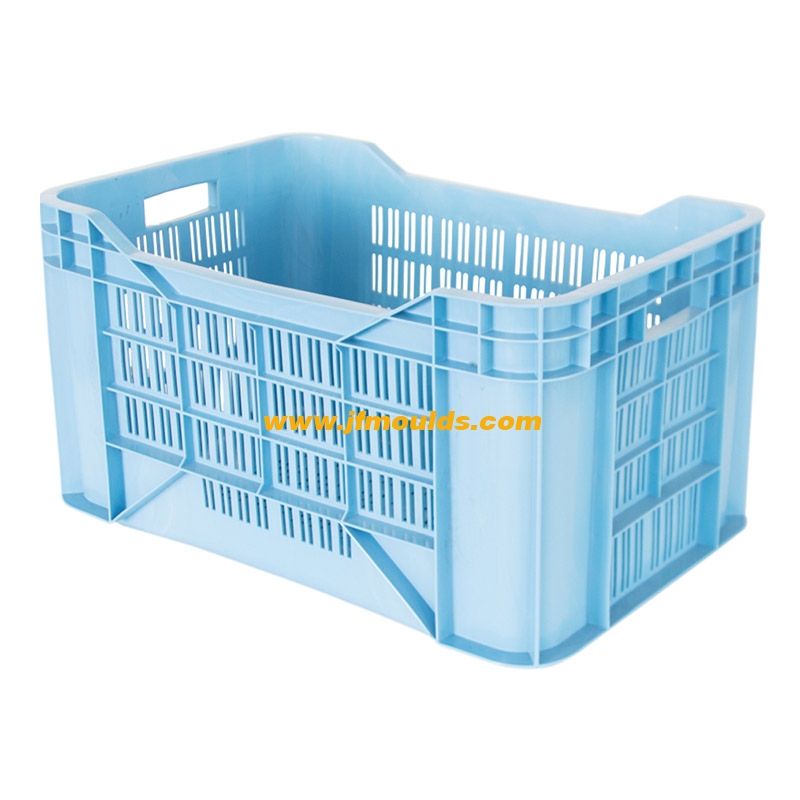

    The diversity of plastic raw materials endows injection molds with more possibilities. Polypropylene (PP) has become a frequent choice for molds of daily necessities such as bottle caps and turnover boxes due to its low cost and easy molding. The design of its molds is relatively simple, only requiring consideration of the uniform flow of the melt. Polycarbonate (PC) has high transparency and strong impact resistance, and is often used in mobile phone casings and spectacle lenses. However, its melt viscosity is high, so molds must be equipped with larger diameter channels and more refined exhaust systems.

    In recent years, the rise of special plastics has put forward brand-new requirements for molds. Biodegradable material PLA (polylactic acid) is highly favored in the field of environmental protection, but it has poor thermal stability. The temperature of the mold needs to be precisely controlled between 170 and 190℃; otherwise, degradation and carbonization will occur. For PA66+GF30 (30% glass fiber reinforced nylon) used in the battery casing of new energy vehicles, due to the fiber filling, the melt fluidity is poor and the wear resistance is strong. Therefore, the mold cavity must be treated with nitriding or coated with tungsten carbide to resist the continuous cutting of glass fiber particles. The battery casing mold of a certain new energy vehicle manufacturer, with the coating cost alone accounting for 15% of the total mold cost, can increase the mold life from 50,000 times to 500,000 times, significantly reducing the long-term production cost.

Iii. Micrometer-level Battlefield: The Ultimate Challenge of Precision Control

    In the world of injection molds, "millimeters" are the unit of roughness, while "micrometers" are the battlefield of competition. When the scale line error of a medical syringe exceeds 0.1mm, it may lead to incorrect dosage of the drug. When the pin holes of the automotive connector deviate by 0.05mm, it will cause poor circuit contact. These details related to safety and performance all rely on the ultimate precision of mold processing.

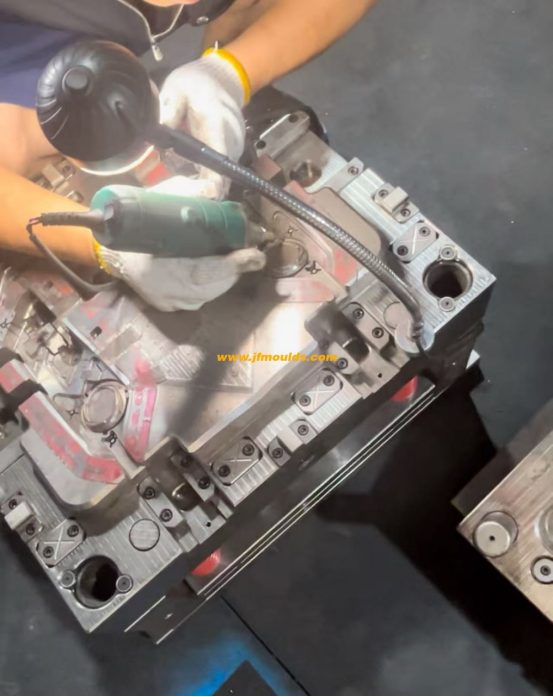

Processing equipment: Physical guarantee of precision

    Modern mold processing has entered the "opto-mechatronics integration" era, and every piece of equipment is a guardian of precision. The high-speed machining center cuts steel at a rotational speed of 30,000 revolutions per minute, with a positioning accuracy of ±0.005mm, and can carve a mirror-like smoothness on the surface of the mold. The electrical discharge forming machine corrodes metals through high-frequency pulse discharge, and can precisely form even tiny grooves as wide as 0.1mm. It is particularly suitable for processing complex cavities that are difficult for traditional tools to reach. The slow wire electrical discharge machining (EDM) machine is like a precise tailor, using molybdenum wire with a diameter of 0.03mm as the "needle and thread" to cut out a contour with a tolerance of only ±0.002mm on the steel, creating a seamless fit surface for the core-pulling mechanism of the mold.

    A certain aviation enterprise has specially introduced a five-axis linkage machining center for manufacturing micro-connector molds for unmanned aerial vehicle cabins. The cavity depth of this mold is only 3mm, but it contains 7 diagonal through holes with a diameter of 0.8mm. Ordinary equipment is difficult to ensure the accuracy of the hole positions. The five-axis machine tool, through the coordinated rotation of the spindle and the worktable, keeps the tool always perpendicular to the processing surface, ultimately controlling the hole position deviation within 0.003mm, ensuring that the pins of the connector can be smoothly inserted and removed.

Detection Technology: The "sharp eyes" of precision

    After processing is completed, the mold still needs to undergo strict testing before it can be put into use. The three-coordinate measuring machine is the "main equipment" for mold inspection. Its probe diameter is only 0.5mm, and it can scan the mold surface at a step of 0.001mm, generating millions of data points for comparison with the design model. Any minor deviation will be exposed. For molds with complex curved surfaces, such as automotive bumper molds, blue light scanning technology should be adopted - by projecting a blue grating to obtain the three-dimensional point cloud data of the mold, full-size inspection can be completed within 10 minutes, with an accuracy of ±0.02mm.

    In the field of optical molds with extremely high precision requirements, the inspection methods are even more stringent. The mobile phone lens molds produced by a certain enterprise need to have the flatness of the cavity surface inspected by a laser interferometer, with the precision unit reaching the "nanometer level" - equivalent to that on a 1-square-meter desktop, the height of the protrusion cannot exceed 1/50 of the diameter of a human hair. This almost exacting standard ensures that the lens mold can produce plastic lenses with a light transmittance of 99.9%.

Iv. Balancing Lifespan and Cost: Full-Cycle Management of Molds

    The value of an injection mold lies not only in its ability to produce qualified products, but also in its comprehensive benefits throughout its entire life cycle. Should one choose low-cost molds for rapid production or invest in high-priced molds for long-term stability? This seemingly simple choice is underwritten by a profound insight into industry rules and corporate strategies.

The decisive factor for the service life of molds

    The lifespan of a mold is like a person's life cycle, influenced by both innate genes and subsequent maintenance. The inherent genes refer to the structural design and material selection of the mold: Molds made of integral forged steel have far better fatigue resistance than those with spliced structures. The wear resistance of the cavity surface treated by nitriding can be increased by more than three times. The subsequent maintenance is reflected in daily upkeep - cleaning the oil stains on the parting surface before each production, regularly checking the clearance of the guide pins and guide sleeves, and promptly replacing worn ejector pins. These details can extend the mold's lifespan by more than 50%.

    The demand for mold lifespan varies greatly across different industries. For promotional gift molds in the fast-moving consumer goods industry, it is often only necessary to produce a few thousand pieces, using ordinary steel and simplified structures, and the unit price can be controlled within ten thousand yuan. For the door interior panel molds in the automotive industry, which need to stably produce over 500,000 pieces, high-end alloy steel must be selected, equipped with wear-resistant coatings and automatic lubrication systems. The cost of a single mold can reach the million-yuan level. A joint venture car factory once did the math: Although the initial investment increased by 30% by using high-quality molds, the total life cycle cost was actually reduced by 25% due to the reduction in downtime for mold repair and the scrap rate.

The art of cost optimization

    The control of mold costs is an art of balance, which requires finding the best fulcrum among precision, lifespan and price. For products with small batch sizes and fast updates, such as smartphone cases, mold factories will adopt "modular design" - standardizing the common structures of different models and only replacing the cavity parts, reducing the mold modification cost by 40%. For large and complex molds, such as the inner liner mold of a refrigerator, adopting an "inlaid structure" instead of overall processing can not only avoid the waste of large steel materials but also facilitate local replacement and maintenance, saving more than 30% of material costs.

    Material selection is a key link in cost control. When a certain home appliance enterprise was manufacturing molds for washing machine control panels, it initially chose imported S136 die steel, with a unit price of 80 yuan per kilogram. Later, through experiments, it was found that after special heat treatment, the performance of domestic 718H steel could reach 90% of that of imported steel, while the price was only 60%. This alone reduced the cost of a single mold by 150,000 yuan. This "cost-performance substitution" is not about lowering standards, but rather a precise choice based on a profound understanding of material properties and thorough testing.
