Injection molds: The hidden champions in industrial manufacturing

• 2025-07-14

Injection molds: The hidden champions in industrial manufacturing

    In the vast system of modern manufacturing, injection molds are like the "hidden champions" behind the scenes. Although they rarely come into the public eye, they have become a key force supporting the production of various plastic products with their unique technical value. From the bottles and jars in our daily life and the shells of electronic devices to the precision components in high-end manufacturing industries such as automobiles and aerospace, injection molds are everywhere. They not only shape the appearance and performance of products, but also profoundly influence production efficiency, cost control and the pace of industrial innovation. This article will delve deeply into the development history, technological innovations, application fields, challenges faced and future trends of injection molds, comprehensively demonstrating the significance and unlimited potential of this industrial cornerstone.

    The origin of injection molds can be traced back to the middle of the 19th century. In 1868, Hyatt improved celluloid material to enable it to be processed into finished shapes, laying the material foundation for the birth of injection molding technology. In 1872, the Hayter brothers registered the patent for the first plunger injection machine. This machine was like a huge subcutaneous injection needle, injecting plastic into molds through heated cylinders. Although its structure was relatively simple, it marked the beginning of the injection mold industry.

    At the beginning of the 20th century, with the rise of the plastic industry, injection molds gradually moved from laboratories to industrial production. Initially, they were mainly used to produce simple daily necessities such as toys and tableware. During World War II, the huge demand for cheap and mass-produced products further promoted the development of injection mold technology. In 1946, American inventor James Watson Hendry built the first injection molding machine, which achieved more precise control over injection speed and quality, and could also mix materials before injection, greatly expanding the types and application scope of injection molded products. In 1951, the first screw injection molding machine was introduced. Its highly efficient plasticizing and injection performance have become an important foundation for modern injection molding machines and are still in use today.

    In the 1970s, Hendry continued to develop the gas-assisted injection molding process, which enabled the production of rapidly cooled complex hollow products, greatly enhancing design flexibility as well as the strength and smoothness of manufactured components. At the same time, it reduced production time, cost, weight and waste, marking another significant milestone in the development of injection mold technology. Since then, with the introduction of computer technology, the design and manufacture of injection molds have begun to achieve automation and digitalization, gradually moving from traditional manual drawing and experience-based manufacturing to a new stage of precise simulation and efficient production. Entering the 21st century, the injection mold industry has continuously made breakthroughs in high precision, high speed, and intelligence, constantly introducing new materials, new processes, and new technologies to meet increasingly complex manufacturing demands.

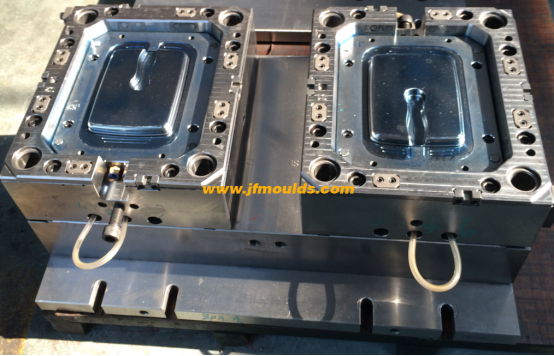

Auto Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

Digital design and simulation optimization

    The wide application of computer-aided design (CAD) and computer-aided engineering (CAE) software is the core manifestation of the digital transformation of injection molds. In a CAD environment, designers can precisely design molds in the form of three-dimensional models in a virtual space, comprehensively presenting the structure, dimensions and details of the molds. This greatly enhances design efficiency and accuracy, and reduces design errors and modification costs. CAE software, by simulating physical phenomena such as plastic flow, pressure distribution, and temperature changes during the injection molding process, predicts in advance possible defects of the product, such as short injection, weld lines, and warpage deformation, and provides a scientific basis for the optimization of mold design. For instance, when designing an injection mold for an automotive interior, CAE simulation analysis was used to discover that short shots might occur at the corners of the product due to poor plastic flow. Based on this, the designer optimized the gate position and runner size, successfully resolving the potential defect and avoiding the waste of time and cost caused by repeated mold trials and modifications in actual production.

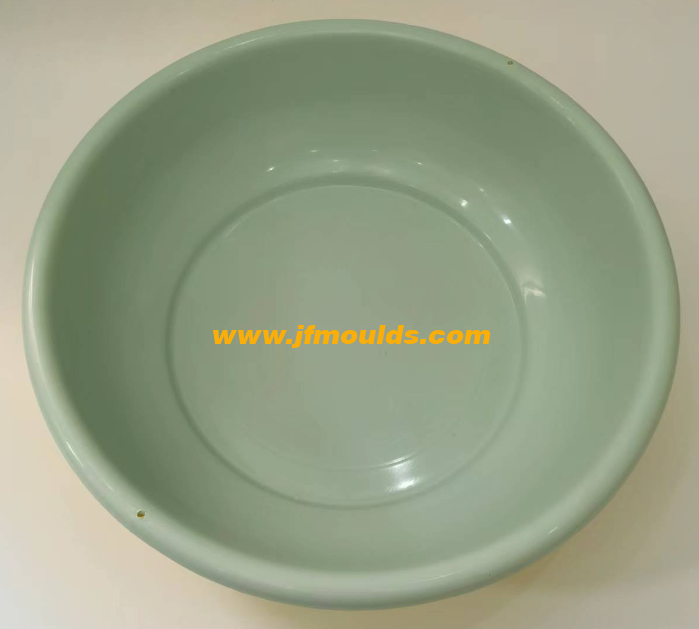

Commodity Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

Intelligent manufacturing and automated production

    The advent of the Industry 4.0 era has brought brand-new concepts and technical means of intelligent manufacturing to the injection mold industry. Intelligent molds achieve real-time monitoring, fault prediction and automatic adjustment of the production process by integrating sensors, data acquisition systems and artificial intelligence algorithms. The sensor can monitor key parameters of the mold such as temperature, pressure and filling speed in real time, and transmit the data to the control system. Once abnormal fluctuations occur in the parameters, the system will immediately issue an alarm and automatically adjust the working parameters of the injection molding machine according to the preset algorithm to ensure the stability and consistency of the production process. The automated production line adopts robots, automatic loading and unloading systems and intelligent warehousing systems, achieving fully automated production from raw materials to finished products. On the electronic component injection molding production line, robots can precisely complete tasks such as feeding plastic pellets, loading and unloading molds, as well as sorting and packaging finished products. This not only reduces manual intervention, lowers labor intensity and human errors, but also significantly improves production efficiency, shortening the production cycle by more than 30%.

Breakthroughs and applications of new manufacturing processes

    In addition to digital and intelligent technologies, new manufacturing processes have also made remarkable progress in the field of injection molds. 3D printing technology, as an additive manufacturing process, has brought brand-new ideas and methods to injection mold manufacturing. It can directly manufacture complex-shaped mold components based on three-dimensional models by layer-by-layer material stacking, without the need for tools, fixtures and multiple processes in traditional processing techniques. This significantly shortens the mold manufacturing cycle and is particularly suitable for the production of small-batch, customized molds. For instance, for an injection mold with complex internal cooling channels, traditional processing techniques find it difficult to precisely manufacture the cooling channels. However, 3D printing technology can handle this with ease. The mold produced has a 40% increase in cooling efficiency during the injection molding process, effectively shortening the product molding cycle and enhancing production efficiency and product quality. In addition, some emerging processing techniques, such as electrical discharge machining (EDM) and laser processing, also play a significant role in injection mold manufacturing. They can achieve high-precision processing and special surface treatment of mold materials, further enhancing the performance and service life of the molds.

Automotive industry: A key support for parts production

    The automotive industry is one of the largest application fields of injection molds. Many components in a car, from interior parts to exterior parts, from structural parts to functional parts, such as instrument panels, door panels, seats, bumpers, headlamp housings, engine hoods, etc., are mostly produced through injection molds. These components not only need to have high precision, high strength and good weather resistance, but also need to meet the demands of large-scale production to reduce production costs. Injection mold technology, with its efficient and precise forming capabilities, can provide high-quality and consistent component products for the automotive industry. For instance, when manufacturing automotive bumpers, injection molds can achieve one-piece molding of bumpers through optimized mold structures and injection molding processes, ensuring their dimensional accuracy and appearance quality, while enhancing production efficiency and meeting the large-scale assembly demands of automotive production lines.

Electronic and electrical appliances: Shaping product appearance and performance

    In the electronics and electrical industry, injection molds also play an indispensable role. From mobile devices such as smart phones, tablets and laptops to large household appliances like refrigerators, washing machines, air conditioners and televisions, a large number of plastic products made by injection molding are used for their shells, buttons, knobs and internal structural components. Injection molds can manufacture high-precision and complex-shaped molds in accordance with the design requirements of electronic products for thinness, miniaturization and multi-functionality, achieving the exquisite shaping of product appearance and the reasonable layout of internal structure. For instance, the injection molds for the shells of smart phones need to have extremely high precision and surface quality to meet the aesthetic and tactile requirements of the phone's appearance. At the same time, the heat dissipation performance and electromagnetic shielding function of the molds should also be taken into account to ensure the normal operation of the electronic components inside the phone. Through the innovative design and manufacture of injection molds, electronic and electrical products have not only become more fashionable and beautiful in appearance, but also significantly improved in performance and reliability.

Medical devices: Ensuring product accuracy and safety

    Medical devices have extremely high requirements for product precision and safety. The application of injection mold technology in this field provides a reliable guarantee for the production of medical devices. A wide range of medical device components, such as syringes, infusion sets, catheters, valves, and medical consumables, can all be produced with high precision through injection molds. The strict quality control and advanced processing techniques in the injection mold manufacturing process can ensure the dimensional accuracy and surface quality of medical device components, meeting the special requirements of medical devices such as sterility, non-toxicity and corrosion resistance. For instance, when manufacturing disposable syringes, the injection molds adopt high-precision mold manufacturing technology and a clean production environment to ensure the fit accuracy between the syringe's piston and cylinder, achieve precise control of the injection dosage of the liquid medicine, and at the same time ensure the sterility and safety of the product, effectively reducing the risk of medical infection.

Packaging industry: Meeting diverse packaging demands

    The packaging industry has a huge demand for plastic products, and injection molds are widely used in this field. Many types of packaging products, such as food packaging, cosmetic packaging, and pharmaceutical packaging, are produced through injection molds. These packaging products are required to have good sealing, impact resistance and weather resistance to protect the items inside from the influence of the external environment. Injection molds can produce packaging molds of various shapes and multiple functions according to different packaging design requirements, such as plastic bottles, plastic boxes, bottle caps, pallets, etc. For instance, the injection molds for cosmetic packaging bottles, through carefully designed mold structures and surface treatment processes, can produce packaging bottles with exquisite appearances and good touch sensations, while ensuring their sealing performance and stability, meeting the storage and display requirements of cosmetics. In the field of food packaging, plastic pallets and food storage boxes produced by injection molds have excellent preservation performance and hygiene standards, which can effectively extend the shelf life of food and ensure food safety.

The complexity and cycle pressure of mold design

    With the increasing complexity and diversity of product design, injection mold design is facing unprecedented challenges. The complex product shapes and high-precision requirements make the mold design need to take into account more factors, such as the plastic flow path, the layout of the cooling system, and the demolding method, which greatly increases the difficulty and workload of the mold design. Meanwhile, the market's demands for the speed of product updates and replacements are getting higher and higher, which leads to the continuous compression of the mold design cycle. Enterprises need to complete the entire process from product design to mold manufacturing in a short period of time, which puts forward extremely high requirements for the technical capabilities and work efficiency of the mold design team. To address this challenge, enterprises need to increase the cultivation and recruitment of mold design talents, and enhance the professional quality and innovation ability of the design team. At the same time, we should strengthen cooperation with universities and research institutions, carry out joint research and development among industry, academia and research institutions, and jointly develop advanced mold design technologies and methods. By using digital design tools and artificial intelligence algorithms, we can achieve the automation and intelligence of mold design, shorten the mold design cycle and improve design quality.

High requirements for mold materials and surface treatment technologies

    The performance of mold materials directly affects the service life of molds and product quality. With the continuous development of injection molding technology and the increasing requirements for product performance, higher demands have been placed on the strength, wear resistance, corrosion resistance, thermal stability and other aspects of mold materials. Meanwhile, in order to enhance the surface quality and demolding performance of molds, surface treatment technology has also become crucial. However, at present, the research and development and production of high-performance mold materials still face many technical difficulties. Some high-end mold materials rely on imports and are expensive, which increases the production costs of enterprises. In terms of surface treatment technology, some advanced surface treatment processes, such as physical vapor deposition (PVD) and chemical vapor deposition (CVD), although they can significantly improve the surface performance of molds, have high equipment investment and complex processes, which limit their wide application in small and medium-sized enterprises. To address these issues, enterprises need to enhance cooperation with material suppliers, jointly carry out research and development and innovation of mold materials, and promote the localization process of high-performance mold materials. At the same time, increase research and investment in surface treatment technology, develop low-cost and high-efficiency surface treatment processes suitable for small and medium-sized enterprises, and improve the comprehensive performance and service life of molds.

Intensified market competition and price pressure

    The competition in the injection mold industry is fierce. With the rapid development of global manufacturing, more and more enterprises have entered the injection mold field, and the competition for market share is becoming increasingly intense. In a highly competitive environment, customers' sensitivity to mold prices is constantly increasing, and enterprises are facing huge price pressure. To stand out in the market competition, enterprises need to enhance the cost performance of their products by optimizing production processes, improving production efficiency, and reducing production costs. At the same time, strengthen brand building and marketing, enhance the enterprise's popularity and reputation, establish a good corporate image, and win the trust and recognition of customers with high-quality products and services. In addition, enterprises should also actively expand market channels, strengthen cooperation with domestic and foreign customers, seek new market growth points, and reduce market risks.

Cross-border integration and diversified development: Expanding Industry Boundaries

    In the future, the injection mold industry will show a more obvious trend of cross-border integration and diversified development. With the continuous emergence of new technologies such as artificial intelligence, the Internet of Things, big data, and new energy, injection molds will be deeply integrated with these fields, creating more new application scenarios and business models. For instance, in the field of smart home, injection molds can be combined with Internet of Things (iot) technology to produce plastic home products with functions such as smart sensing and remote control. In the field of new energy vehicles, injection molds will provide technical support for the manufacturing of key components such as battery casings and charging piles, contributing to the development of the new energy vehicle industry. In addition, the injection mold industry will also expand into other related fields, such as aerospace, Marine engineering, biomedicine, etc. Through continuous innovation and technological upgrading, it will meet the demands of these high-end fields for precision injection molds and achieve diversified development of the industry.
