Exploring Injection Molds: The Cornerstone of Precision Manufacturing

• 2025-07-02

Exploring Injection Molds: The Cornerstone of Precision Manufacturing

    In the vast landscape of modern manufacturing, injection molds, as key tools for plastic molding, are like unsung heroes, silently supporting the production of products in various fields, from daily necessities to high-tech electronic products. Injection molds are everywhere and profoundly influence every aspect of our lives.

1. Working Principle and Structure of Injection Molds

    （1）：The working process of injection molds is just like a precise industrial dance. Firstly, the plastic raw materials are heated to a molten state in the barrel of the injection molding machine, as if endowed with the  vitality of flow. Subsequently, under the impetus of powerful pressure, these molten plastics were injected into the cavity of the mold at high speed like a surging torrent. The cavity, as the core part of the mold, has a shape  and size exactly the same as the final product, just like a precise casting mold. Here, the plastic melt rapidly fills every tiny corner, replicating the contour of the cavity. Immediately after, through the cooling system inside the mold, heat is quickly removed, causing the plastic melt to cool and solidify, gradually hardening into the shape of the plastic product we need. Finally, the mold is opened, and the ejection system smoothly pushes the formed plastic part out of the mold, completing the entire wonderful injection molding process.

    （2）：The structure of injection molds is complex and exquisite, like a meticulously constructed industrial castle, composed of multiple key parts working together. Among them, the gating system is the channel for the plastic melt to enter the cavity, including the main runner, runner, gate and cold material cavity, etc. The main runner is like a main thoroughfare, guiding the plastic melt from the injection molding machine nozzle to the branch runner. The runner is like a branch road, evenly distributing the melt to each gate. The gate is a key checkpoint for controlling the speed and flow rate of the melt entering the cavity. The cold material chamber is responsible for collecting the cold material at the beginning of injection molding to ensure the quality of the plastic part.

    （3）：The cavity and core of the mold are the key components that directly shape the plastic part. They work closely together, like the Yin and Yang poles, precisely defining the inner and outer contours of the plastic part. The slider and the inclined top and other lateral core-pulling mechanisms are the secret weapons to solve the problem of forming the lateral concave-convex structure of plastic parts. During the opening and closing of the mold, they move ingeniously to achieve lateral core-pulling, providing the possibility of forming complex-shaped plastic parts.

    （4）：The guiding and positioning system is the navigator of the mold, ensuring that the mold is accurately aligned during the opening and closing process and preventing misalignment and deviation. The ejection system is the driver for the plastic part to be removed from the mold. Through components such as ejector pins and ejection tubes, the formed plastic part is smoothly ejected. The cooling system is like an air conditioner for the mold. Through the circulating cooling medium, it rapidly lowers the mold temperature, accelerates the cooling speed of the plastic part, and enhances production efficiency.

Commodity Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

2: Key Points of Injection Mold Design

    The design of injection molds is a creative task that integrates science and art, requiring designers to possess profound professional knowledge and rich practical experience. In the design process, a comprehensive and detailed process analysis of the plastic part should be conducted first. This includes a thorough understanding of the shape of the plastic part, dimensional accuracy requirements, surface quality requirements, and the characteristics of the plastic material, etc. Different plastic materials have different fluidity, shrinkage rates and molding process parameters, and all these factors will have a profound impact on mold design. For instance, when designing molds for plastic materials with a relatively high shrinkage rate, it is necessary to fully consider shrinkage compensation to ensure the dimensional accuracy of the plastic parts.

    The design of the gating system is one of the key links in mold design. Designers need to carefully select the appropriate gate form and position based on the shape, size and production batch of the plastic part. The size, shape and position of the gate directly affect the flow rate, pressure distribution and filling effect of the plastic melt, and thus influence the quality of the plastic part and the production efficiency. For instance, point gates are suitable for plastic parts with high appearance requirements, as they can leave relatively small gate marks on the surface of the plastic parts. The side gate, on the other hand, is suitable for plastic parts with relatively simple structures and has the advantages of convenient processing and large flow rate.

    The design of the parting surface of the mold is also of vital importance, as it determines the opening and closing method of the mold and the demolding method of the plastic part. The selection of the parting surface should follow the principles of facilitating processing, ensuring the quality of the plastic part and facilitating demolding. At the same time, the structural strength and exhaust effect of the mold should also be taken into consideration to ensure the stability and reliability of the mold during use.

    In addition, the design of the cooling system for the mold cannot be ignored. A reasonable cooling system can uniformly lower the mold temperature, reduce the cooling time of plastic parts, improve production efficiency, and at the same time effectively control the shrinkage and deformation of plastic parts, ensuring their dimensional accuracy and surface quality. The layout, diameter and flow rate of the cooling water channels all need to be precisely calculated and optimized to achieve the best cooling effect.

Processing equipment_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

3: Manufacturing Process of Injection molds

    The manufacturing process of injection molds is a feast of craftsmanship that pursues ultimate precision, integrating a variety of advanced processing technologies. Mechanical processing is the foundation of mold manufacturing. Through technologies such as CNC machining centers, electrical discharge machining (EDM), wire cutting, and deep hole drilling, mold materials are gradually processed into the required shapes and sizes.

    CNC machining centers feature high precision, high efficiency and multi-functionality, and can complete various complex-shaped processing tasks such as milling, drilling and boring of molds. It controls the movement trajectory of the cutting tool through pre-written programs, achieving automated processing, which greatly improves processing accuracy and production efficiency.

    EDM processing utilizes the principle of discharge corrosion to process the complex shapes and fine structures of molds. It can process materials with high hardness and achieve high-precision processing. For some parts that are difficult to complete by traditional mechanical processing methods, such as the cavity, core and inserts of molds, EDM processing plays an indispensable role.

    Wire cutting processing is mainly used for processing irregular holes, narrow grooves and profiles of molds. It achieves the cutting processing of the workpiece through the discharge corrosion effect between the high-speed moving electrode wire and the workpiece. Wire cutting processing has the advantages of high processing accuracy and good surface quality, which can meet the high-precision requirements of mold manufacturing.

    Deep hole drilling is used to process deep holes in molds, such as cooling water channels and top pinholes. It employs specialized deep hole drilling equipment and tools, capable of drilling high-precision holes with a large depth-to-diameter ratio in the mold material, providing necessary channels for the mold's cooling and ejection systems.

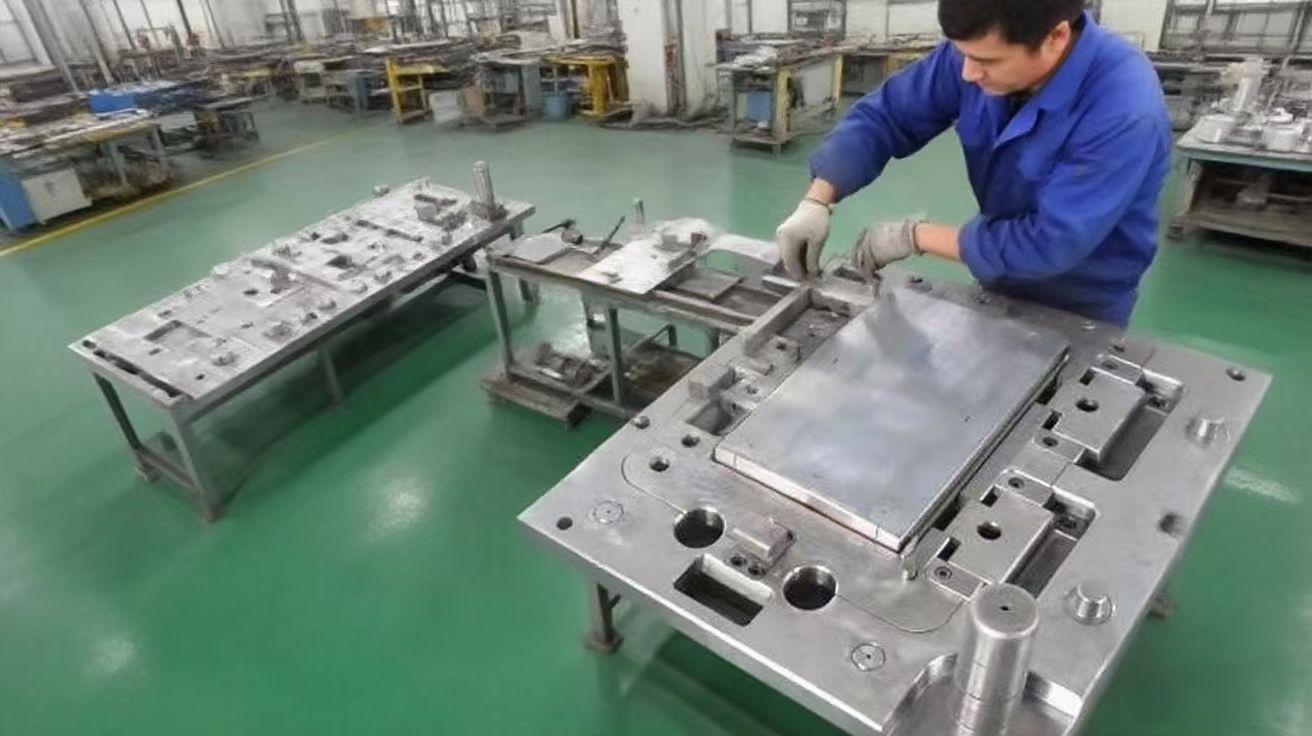

    In addition to the above-mentioned processing techniques, the mold manufacturing process also requires procedures such as fitter assembly, heat treatment and surface treatment. Fitter assembly involves assembling and debugging various processed mold parts to ensure that all components of the mold fit closely and move smoothly. Heat treatment can enhance the hardness, strength and wear resistance of mold materials, and prolong the service life of molds. Surface treatment can improve the smoothness, corrosion resistance and demolding performance of the mold surface, and enhance the surface quality of the plastic part.

4: Applications of Injection Molds in Various Fields

    Injection molds, with their high efficiency, precision and flexible forming capabilities, have been widely applied in numerous fields and have become an important force driving the development of various industries.

    In the field of automotive manufacturing, injection molds are everywhere. The interior parts of a car, such as the dashboard, seats, and door panels, are mostly manufactured by injection molding. These plastic parts not only have an attractive appearance, but also offer good comfort and safety. The exterior parts of a car, such as bumpers, lampshades, and rearview mirror housings, also rely on the support of injection molds. Injection molds can produce high-precision and high-strength plastic exterior parts, which not only reduce the weight of automobiles but also improve their fuel economy and appearance quality. In addition, some plastic parts in automotive engines, transmissions and other components, such as intake manifolds, oil pans and filter housings, are also manufactured by injection molding. These plastic parts, while ensuring performance, reduce manufacturing costs and improve production efficiency.

Auto Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

    In the field of electronics and electrical appliances, injection molds also play a crucial role. The casings and components of electronic products such as mobile phones, computers and televisions are mostly manufactured by injection molding process. Injection molds can produce high-precision, thin-walled plastic casings, which not only meet the requirements of electronic products for appearance and dimensional accuracy, but also improve the heat dissipation performance and electromagnetic shielding performance of the products. In addition, some internal components in electronic and electrical products, such as connectors, sockets, switches, etc., also cannot do without the support of injection molds. Injection molds can produce high-precision and high-performance plastic components, ensuring the reliability and stability of electronic and electrical products.

    In the field of medical devices, the application of injection molds is also becoming increasingly widespread. Most medical device products such as syringes, infusion sets, medicine bottles and prosthetic limbs are manufactured by injection molding process. Injection molds can produce high-precision and high-cleanliness plastic products, meeting the strict requirements of medical devices for product quality and safety. In addition, injection molds can also produce medical device products with special functions, such as degradable medical stents and personalized prosthetics, providing new technical means for the development of the medical device industry.

    In the field of daily necessities, injection molds are closely related to our lives. Most daily necessities such as plastic tableware, toys, stationery and furniture are manufactured by injection molding process. Injection molds can produce plastic products of various shapes and rich colors, meeting people's diverse demands for daily necessities. Meanwhile, the efficient production capacity of injection molds has also made the prices of these daily necessities more affordable, improving people's quality of life.

5: Development Trends of Injection Molds

    With the rapid development of technology and the continuous changes in market demand, the injection mold industry is also constantly innovating and developing, presenting a series of new trends.

    High precision and high performance are the eternal themes in the development of injection molds. With the continuous improvement of product quality and performance requirements in various industries, injection molds need to have higher precision and performance. In the future, injection molds will develop towards micron or even nanometer precision, enabling the production of more precise and complex plastic products. Meanwhile, the service life, production efficiency and stability of molds will also be continuously improved to meet the demands of large-scale and high-efficiency production.

    Intelligence and automation are the inevitable trends in the development of injection molds. With the continuous development of technologies such as artificial intelligence, the Internet of Things and big data, injection molds will achieve intelligent control and automated production. Through devices such as sensors, controllers and actuators, injection molds can monitor and adjust various parameters during the production process in real time, achieving optimization and intelligent control of the production process. Meanwhile, the application of automated production lines and robots will significantly enhance the production efficiency and quality stability of injection molds, and reduce labor costs and intensity.

    Green environmental protection is an important direction for the development of injection molds. With the continuous improvement of global environmental awareness, the injection mold industry also needs to pay more attention to green and environmental protection. In the future, injection molds will adopt more environmentally friendly materials and processes to reduce pollution to the environment. Meanwhile, the design and manufacture of molds will pay more attention to resource conservation and recycling, and enhance the service life and recyclability of molds.

    Personalized customization is a new opportunity for the development of injection molds. With the increasingly diverse and personalized market demands, the injection mold industry needs to have a stronger ability for personalized customization. In the future, injection molds will be able to respond quickly to customer demands and produce personalized and customized plastic products through digital design and manufacturing technologies. Meanwhile, the application of emerging manufacturing technologies such as 3D printing will also provide new technical means for the personalized customization of injection molds.

    Injection molds, as an important cornerstone of modern manufacturing, play an irreplaceable role in promoting the development of various industries and improving people's quality of life. With the continuous progress and innovation of technology, the injection mold industry will embrace a broader development prospect. We look forward to injection molds creating more miracles in the future and making greater contributions to the development of human society.
