Injection molds: From millimeter-level precision to the invisible engine of industrial transformation

• 2025-07-07

Injection molds: From millimeter-level precision to the invisible engine of industrial transformation

    In the modern industrial system, injection molds are a kind of special equipment that combines technical density and industrial value. It takes steel as its backbone and precision as its soul, transforming molten plastic into industrial products of various shapes, ranging from 0.1-millimeter electronic connector pins to

 3-meter-long car bumpers. Its precision control capability directly defines the quality ceiling of the manufacturing industry. According to industry data, 75% of global plastic products rely on injection molds for molding. For every 0.01 millimeter increase in mold precision, more than 30% of assem

bly losses can be reduced for downstream industries. This "invisible precision" is quietly reshaping the development patterns of dozens of fields such as automobiles, healthcare, and aviation.

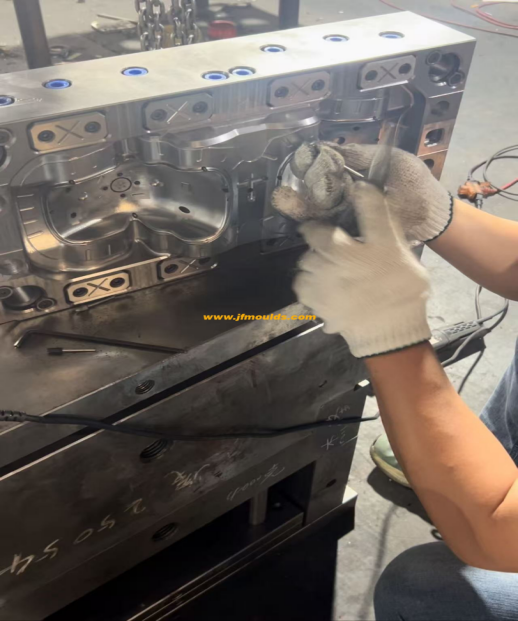

Auto Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

I. Precision Game in the Microscopic World: The Core Technical Code of Injection Molds

    The precision control of injection molds can be regarded as a microscopic wonder of modern industry. When we observe the seams of the mobile phone casing under a microscope, those 0.02-millimeter gaps that are hard to distinguish with the naked eye are actually the perfect compromise between the mold cavity and the core after thousands of adjustments. This precision control involves three interwoven technical dimensions, which together form the "iron triangle" of mold performance.

    The covert war of materials has never ceased in mold manufacturing. The traditional view holds that the hardness of die steel is the sole guarantee of precision. However, in actual production, the "red hardness" (the ability to maintain hardness at high temperatures) of H13 steel is often more crucial than its hardness at room temperature. When molten plastic is injected into the mold at 250℃, the cavity surface has to withstand a pressure of 500 Newtons per square centimeter. If the thermal expansion coefficient of the material deviates by 0.00001/℃, A 1-meter-long mold will cause a deformation of 0.1 millimeters. This is also the reason why precision molds in the aerospace field must use S136H improved steel. After special aging treatment, the thermal deformation within the range of -50℃ to 300℃ can be controlled within 0.005 mm/m.

    The topological wisdom of structural design is hidden in every detail. The Angle design between the main channel and the diversion channel may seem simple, but it actually affects the flow  velocity distribution of the plastic melt - a 45° Angle can reduce pressure loss by 30%, while a 60° Angle is more conducive to exhaust. A certain medical equipment manufacturer once had a 0.05 millimeter deviation in the gate diameter of the infusion set mold, which led to the residual amount of the liquid medicine exceeding the standard by three times. Eventually, through CAE simulation, the gate was changed to a fan-shaped structure, and this industry problem was solved. The fit accuracy of the guiding mechanism is even more stringent. The gap between the guide post and the guide sleeve needs to be controlled within 0.003 to 0.005 millimeters, which is equivalent to 1/20 of the diameter of a human hair. Only with such precision can the mold maintain a micron-level repeat positioning accuracy each time it opens and closes.

    The dynamic equilibrium of the temperature field is the invisible hand of precision control. The layout of the cooling water channels in the mold is not a simple parallel arrangement, but rather a "gradient design" based on the difference in the wall thickness of the plastic part. In the mold of the automotive dashboard, the designer will arrange water channels with a diameter of 12 millimeters at the 8-millimeter thick reinforcing ribs, and use 8-millimeter water channels in the 2-millimeter thin-walled area. The cooling speed of each area is synchronized through the flow difference. The battery casing mold of a certain new energy vehicle manufacturer caused the plastic part to warp by 0.3 millimeters due to uneven cooling, failing to meet the sealing requirements. Eventually, by adding a spiral waterway, the cooling time was shortened from 60 seconds to 45 seconds, and the deformation was controlled within 0.05 millimeters.

Ii. Technological Breakthrough in the Customized Era: From Standard Mold Bases to Irregular Shape Solutions

    When consumer electronics enter the "millimeter competition" era, standardized molds can no longer meet the industrial demands. Customized injection molds are becoming a testing ground for technological innovation. The core challenge lies in how to balance the contradiction between "complex structure" and "mass production stability". The watch case mold of a certain smartwatch manufacturer contains 12 sliders and 8 inclined tops, and needs to complete the synchronous coreless action within 0.5 seconds. This level of complexity requires the processing accuracy of the mold parts to reach IT5 grade (tolerance range ±0.005 millimeters).

    Micro injection molds have opened up a new dimension in the competition of precision. In the field of medical microfluidic chips, molds need to form microchannels with a width of only 50 micrometers, which is equivalent to the diameter of a human hair. This kind of precision requires that the processing equipment must have nano-level feed capability - using super-hard tools (CBN cubic boron nitride) for cutting under high-speed spindles (40,000 revolutions per minute), while the ambient temperature needs to be controlled at 20±0.5℃ to avoid thermal deformation affecting the processing accuracy. The chip mold of a certain biological testing company has achieved batch replication of 30-micron microstructures by using UV-LIGA lithography technology to fabricate electrode cavities, reducing the consumption of testing reagents by 70%.

    The technical difficulty of large and complex molds lies in the "balance of force". The weight of a 3-meter-long car side panel mold exceeds 50 tons. The processing of its cavity requires a five-axis linkage machining center to operate continuously for 72 hours, during which the tool wear must be controlled within 0.01 millimeters. The more crucial aspect is the distribution of the clamping force - when the injection molding machine closes the mold with a force of 1800 tons, the force deviation of each part of the mold must not exceed 5%; otherwise, it will cause flash or shrinkage marks on the plastic part. A certain commercial vehicle factory has increased the qualification rate of large bumpers from 82% to 99% by embedding 24 pressure sensors in the mold to monitor the distribution of clamping force in real time.

    Rapid response molds are transforming the industrial ecosystem. The development cycle of traditional molds is as long as 45 days, while for molds with 3D printed conformal cooling water channels, the development cycle can be shortened to 15 days. The core of the washing machine control panel mold of a certain home appliance enterprise, made through SLM metal 3D printing technology, has a 40% increase in cooling efficiency. At the same time, as there is no need for traditional water channel drilling processing, the realization cost of complex structures has been reduced by 35%. This "rapid iteration" capability has halved the cycle from product design to mass production, making it particularly suitable for rapidly changing markets such as smart homes.

Iii. Material Revolution and Process Evolution: Technological Leap in Mold Manufacturing

    The development history of injection molds is essentially an evolutionary history driven by the mutual promotion of materials and processes. When the aerospace field requires molds that can withstand temperatures up to 300℃, traditional steel materials have become inadequate. As a result, a new type of powder high-speed steel has emerged - ASP-60 steel, produced through atomization powder-making technology, has a carbide distribution uniformity five times that of traditional forged steel and can still maintain a hardness of HRC58 at 500℃ Increase the service life of the engine cylinder head mold from 500,000 cycles to 1.5 million cycles.

    Surface treatment technology has become the key to maintaining precision. After plasma nitriding treatment, the surface hardness of the mold cavity can be increased from HRC30 to HRC65, and a hardened layer 0.01 millimeters thick is formed at the same time. This layer can not only resist the erosion and wear of the plastic melt but also does not affect the surface quality of the plastic part. In optical lens molds, ultra-precision polishing technology can achieve a cavity surface roughness of Ra0.001 microns, which is ten times the smoothness of a mirror surface. Only with such precision can the light transmittance of the lens reach 99.9%. The lens mold of a certain camera manufacturer adopts magnetorheological polishing technology, which keeps surface defects within 5 nanometers and increases the lens resolution by 20%.

    Additive manufacturing has brought about a paradigm innovation in mold structure. The cooling water channels of traditional molds are limited by the drilling process and can only be made in a straight line. However, 3D printing technology can create spiral, dendritic and other conformal water channels, increasing the cooling efficiency by more than 40%. The mold of a certain mobile phone shell manufacturer has adopted selective laser melting (SLM) technology to build a waterway network imitating biological blood vessels inside the core, reducing the molding cycle from 30 seconds to 18 seconds, and at the same time, the warpage of the plastic part has been reduced from 0.2 millimeters to 0.08 millimeters. This technology not only enhances production efficiency but also resolves the problem of "shrinkage marks in thick-walled areas" that is difficult for traditional molds to overcome.

    Intelligent sensor integration endows molds with "tactile sense". Modern high-end molds are equipped with various sensors such as temperature, pressure and displacement sensors, and can collect 1,000 sets of production data per second in real time. When abnormal fluctuations in cavity pressure are detected, the system will adjust the parameters of the injection molding machine within 0.1 seconds to prevent batch defects. The bumper mold of a certain auto parts manufacturer has achieved real-time monitoring of stress distribution by implanting optical fiber sensors at key parts, which has increased the product qualification rate from 92% to 99.5% and reduced waste costs by 8 million yuan annually. This closed-loop system of "perception - feedback - adjustment" is reconfiguring the quality control model of injection molding production.

Motorcycle Mould_Taizhou Jiefeng Mould Co.,Ltd. (jfmoulds.com)

Iv. Cross-border Integration Industrial Ecosystem: Vertical Penetration of Injection Molds

   The technological breakthroughs in injection molds are profoundly influencing the technological paths of downstream industries. In the field of automotive lightweighting, advancements in mold technology have made it possible for plastics to replace metals - car door panels produced with gas-assisted injection molds have a 30% reduction in weight while increasing rigidity by 25%. More importantly, the integrated injection molding technology can transform the traditional assembly structure of 15 metal parts into a single mold in one go, increasing production efficiency by five times. This transformation is reshaping the supply chain system of automotive parts.

    The requirements for mold precision in the medical and health field have reached a new height. The dropper mold of the infusion set needs to control a wall thickness deviation of 0.01 millimeters to ensure the stability of the dripping speed of the liquid medicine. The surface roughness of the push rod mold for the insulin pen must reach Ra0.02 microns to prevent the drug tube from being scratched and causing leakage. In the production of COVID-19 vaccine syringes, the mold needs to complete 500,000 injection molding cycles within 12 hours, which requires the mold's guiding mechanism to have extremely high wear resistance. After replacing traditional steel guide pins with ceramic guide pins, the mold's lifespan was increased from 3 million cycles to 10 million cycles, meeting the demands of large-scale vaccine production.

    The explosion of smart wearable devices has given rise to innovations in micro-precision molds. The shell mold of a certain brand of smart bracelet contains 7 core-pulling mechanisms and 4 latent gates, which need to complete complex actions within a space with a diameter of 30 millimeters. What is more challenging is that the diameter of the connecting shaft hole of the watch strap is only 1.2 millimeters, and its roundness error needs to be controlled within 0.002 millimeters; otherwise, it will cause the watch strap to get stuck. This precision requirement requires the mold to adopt a "split cavity" design, and the inserts are fabricated through electroforming technology, achieving a replication accuracy of 99.9% for the micro-structures.

    Mold technology in the aerospace field is full of particularities. The propeller mold of a drone needs to be formed into a complex airfoil surface, and its dimensional accuracy directly affects the flight efficiency - for every 0.1 millimeter deviation in the airfoil chord length, the endurance will decrease by 5%. In the production of satellite components, molds must withstand ultra-low temperatures of -196℃ (for forming low-temperature sealing rings), which requires the use of special low-temperature tough steel materials. At the same time, the surface of the cavity needs to undergo low-temperature nitriding treatment to avoid low-temperature embrittlement. The satellite antenna cover mold of a certain aerospace enterprise, by adopting carbon fiber reinforced composite materials, not only ensures the rigidity of the mold but also reduces its weight, lowering the hoisting cost of large molds by 40%.

V. The Future Is Here: The Technological Frontier of Injection Molds

    As the wave of Industry 4.0 sweeps through the manufacturing industry, injection molds are evolving towards the direction of "digital twins". The intelligent mold system developed by a certain mold enterprise can build a digital model of the mold in the virtual space, and map the temperature field and stress field distribution of the physical mold in real time. Engineers can observe the operating status inside the mold through AR glasses. This technology has shortened the mold debugging time from the traditional two weeks to three days, and reduced the mold trial cost by 60%. More importantly, by accumulating production data from over 100,000 modules, the system can independently optimize process parameters and achieve "self-learning" precision maintenance.

    Green mold technology is solving environmental protection problems. The molding of biodegradable plastics requires special molds - PLA (polylactic acid) material is prone to degradation at high temperatures, so the mold temperature should be controlled at 170±1℃, and the cooling rate should be 30% faster than that of traditional plastics. The lunch box molds of a certain packaging enterprise adopt a fully hot runner design, eliminating runner waste and increasing the material utilization rate from 70% to 98%, reducing plastic waste by 120 tons annually. In the field of mold remanufacturing, the dimensional accuracy of cavities repaired by laser cladding technology can be restored to 95% of that of new products, extending the service life of molds by 2 to 3 times. This circular economy model is being widely adopted by enterprises such as Coca-Cola.

    Cross-material forming molds have broken the boundaries of traditional processes. In the production of automotive headlamps, two-color molds can form PMMA (lampshade) and ABS (lamp base) materials in one go, eliminating the need for subsequent assembly processes. The more advanced "in-mold decoration" (IMD) technology can complete pattern printing during the injection molding process, reducing the decoration procedures of mobile phone shells by five steps. In the future, with the development of 4D printing technology, molds may achieve "dynamic cavities" - by making the core with shape memory alloy and changing the cavity size during the molding process, a gradient structure of the plastic part can be realized. This technology will bring unlimited possibilities to product design.

    Globalized collaborative design has reshaped the landscape of the mold industry. In a collaborative project between a German automaker and a Chinese mold enterprise, a cloud-based CAD platform was adopted to achieve real-time collaboration. German engineers adjusted the product model in Berlin, while Chinese engineers simultaneously optimized the mold structure in Suzhou. This model shortened the mold development cycle by 40%. More importantly, the encrypted transmission of design data is achieved through blockchain technology, ensuring the security of cross-border technological cooperation. In the future, as metaverse technology matures, global engineers may jointly debug digital molds in virtual Spaces, bringing the efficiency of technological collaboration to a new height.

    From the micrometer-level precision control at the micro level to the reshaping of the industrial ecosystem at the macro level, injection molds have always been at the forefront of manufacturing innovation. It is both the cornerstone of traditional industries and the carrier of emerging technologies. This dual attribute makes it an "invisible yardstick" for measuring a country's manufacturing level. When we marvel at the thinness and lightness of smart phones, the range of new energy vehicles and the precision of medical equipment, perhaps we should pay more tribute to those craftsmen and engineers who polish molds - it is precisely their dedication to 0.001 millimeters that has driven human industrial civilization forward continuously. In the balance between precision and efficiency, innovation and inheritance, the story of injection molds continues to write new chapters.
